Seawater Reverse Osmosis (RO) Elements
TFS Series -Seawater Desalination RO Membranes
Product Description
Transfilm TFS series are high-end RO membranes featuring a supporting layer with high compression resistance, thick and dense flawless thin film layer. It has good wear and chemical degradation resistance. The membrane element does not need postprocessing during the manufacturing. It tolerates a wide range of pH, which enables more efficient and rougher cleaning using regular acid and base, therefore it has high cleaning efficiency. The membrane system can operate in long term under lower pressure due to thorough cleaning, therefore the membrane performs better during its service life. It can significantly reduce operation costs, and bring the best long-term economy to the seawater desalination system.
Product Highlights
· High rejection rate of salts
· High compression and fouling resistance and high cleaning efficiency
· Cost-saving of seawater desalination system

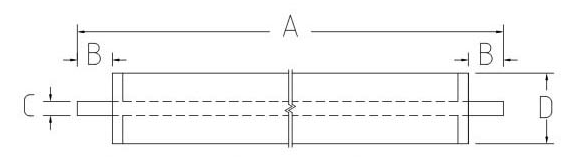

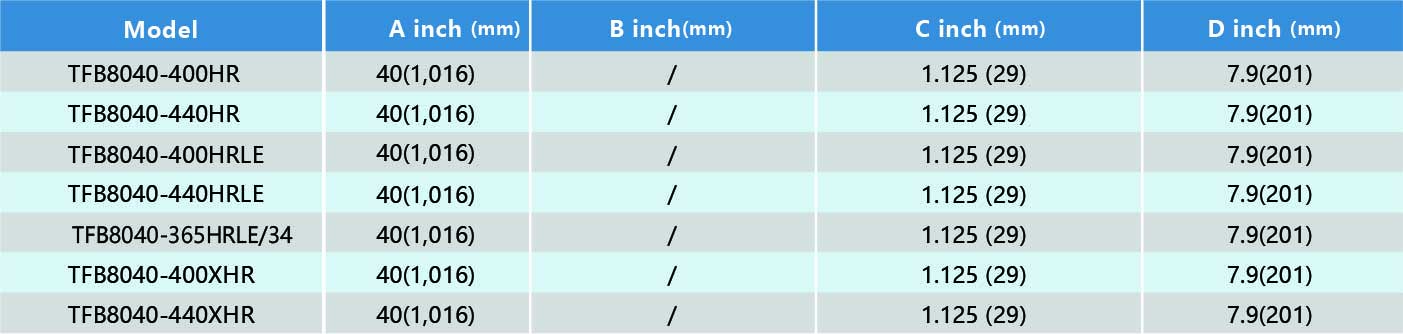

Product Dimensions

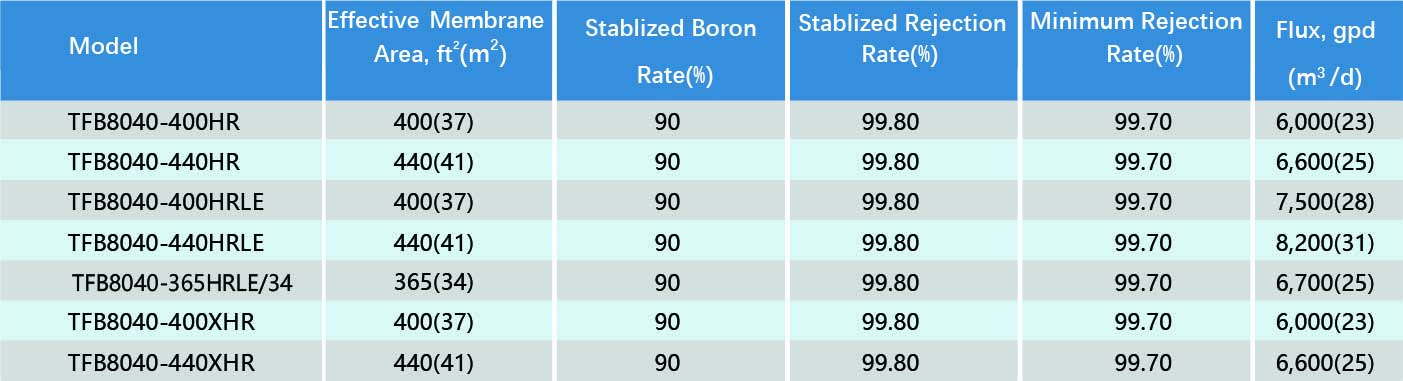

Product Specifications
Flux and rejection rate is based on the following standard test conditions: 5.5 MPa (800 psi) pressure, 77°F (25°C), 32000 ppm NaCl solution and pH 8 for feedwater, and 8% recovery.
Operating and Cleaning Limits
Notes
· Maximum Operating Pressure 83 bar (1200 psi)
· Maximum Operating Temperature 45°C (113°F)
· Maximum Element Pressure Drop 1.0 bar (15psi)
· pH Range Continuous Operation 2-11
· pH Range Short-Term Cleaning 1-13
· Maximum Feed SDI(SDI15) 5.0
· Free Chlorine Tolerance < 0.1 ppm
· Permeate flow for individual elements may vary ±15 percent from the value specified.
· Active membrane area guaranteed ±4%.
· Stabilized salt rejection is generally achieved within 24-48 hours of continuous use; depending upon feedwater characteristics and operating conditions.
Seawater Reverse Osmosis (RO) Elements
TFS Series - Seawater Desalination RO Membranes
The TFS series are high-performance reverse osmosis membranes designed for seawater desalination. Each element features a robust support layer with high compression resistance and a uniform, dense thin-film active layer for reliable separation.
These membranes offer excellent resistance to wear and chemical degradation, and they are manufactured ready-to-use with no post-processing required. With broad pH tolerance, the TFS series allows more efficient cleaning with standard acid and base solutions, improving cleaning effectiveness and operational reliability.
Thorough cleaning and long-term durability allow the system to operate at lower pressures, enhancing membrane performance throughout its service life. The result is reduced operating costs and optimized long-term economics for seawater desalination systems.
Product Highlights
- High rejection rate of salts
- High compression and fouling resistance and high cleaning efficiency
- Cost-saving of seawater desalination system
Product Dimensions
Product Specifications
Flux and rejection rate is based on the following standard test conditions: 5.5 MPa (800 psi) pressure, 77°F (25°C), 32000 ppm NaCl solution and pH 8 for feedwater, and 8% recovery.
Operating and Cleaning Limits
- Maximum Operating Pressure 83 bar (1200 psi)
- Maximum Operating Temperature 45°C (113°F)
- Maximum Element Pressure Drop 1.0 bar (15psi)
- pH Range Continuous Operation 2-11
- pH Range Short-Term Cleaning 1-13
- Maximum Feed SDI(SDI15) 5.0
- Free Chlorine Tolerance < 0.1 ppm
Notes
- Permeate flow for individual elements may vary ±15 percent from the value specified.
- Active membrane area guaranteed ±4%.
- Stabilized salt rejection is generally achieved within 24-48 hours of continuous use depending upon feedwater characteristics and operating conditions.
